Photometers
For filter integrity and particle-based verification measurements.
Filter integrity
Particle-based filter testing, matched to method and reporting.
Photometers support HEPA and ULPA leak testing workflows where upstream challenge concentration and downstream readings need to be clear, repeatable and reportable.
AWISEL reviews photometer selection, probe configuration, reporting expectations and user training together with the test method, room type and applicable procedure.
Photometer options

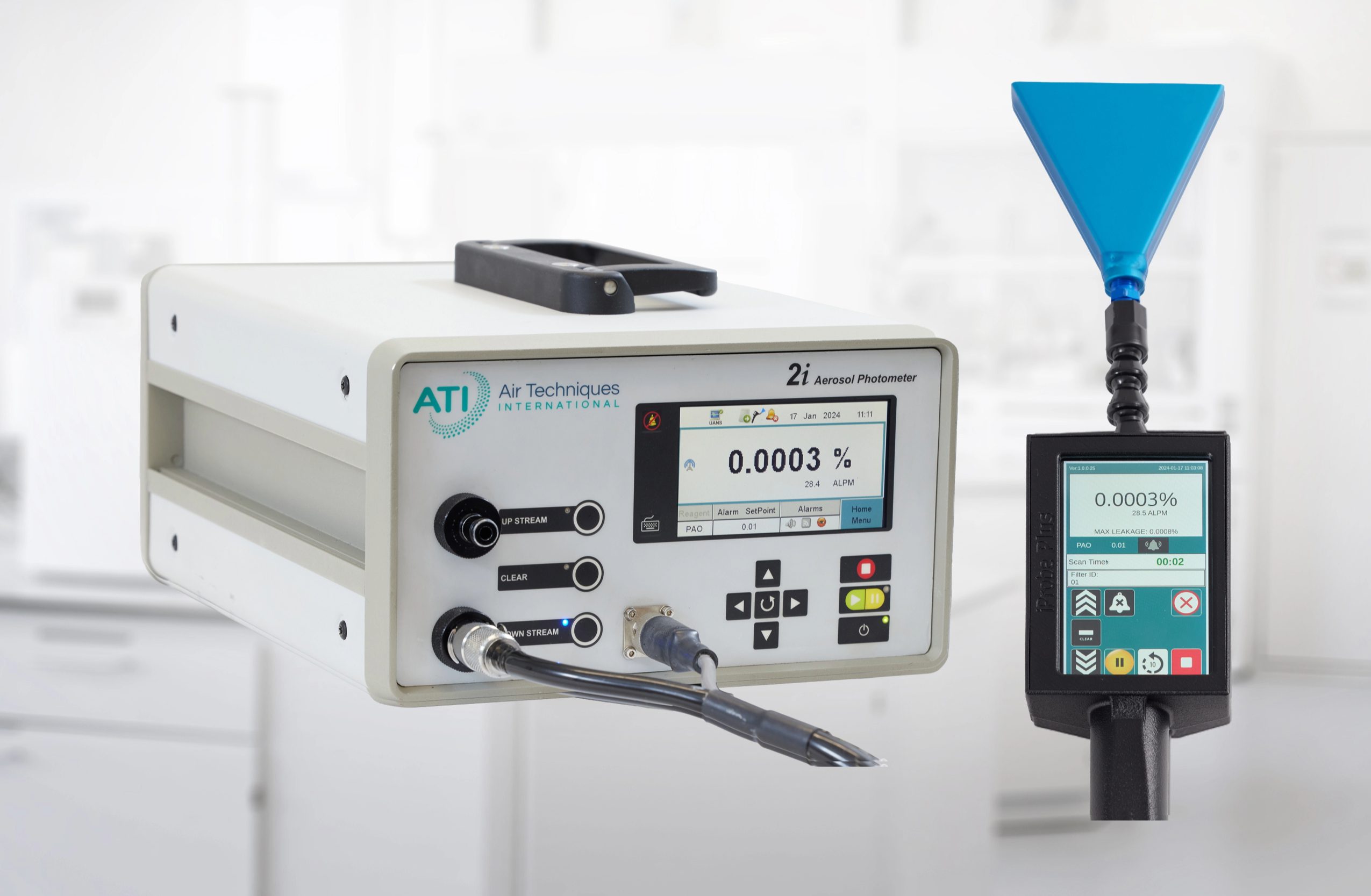

ATI 2i Aerosol Photometer.
This page presents the ATI 2i family for HEPA and ULPA filter leak testing. AWISEL reviews instrument, probe, accessory, reporting and training needs as one selection path.
2i ecosystem
One photometer, clearer configuration choices.
Portable aerosol photometer for HEPA / ULPA leak scan work, with USB output and optional thermal printer support.
Scanning probe with 4.3-inch color touchscreen, scan records and upstream / downstream / clear valve control from the probe.
Sealed sample train configuration for projects that need ASME N511, ASME 510, ASME 509 or ASME AG-1 compatibility.
Technical summary
ATI 2i key specifications.
A compact view of the official 2i data for early selection. AWISEL reviews voltage, probe, reporting and user training choices together with the test method.
Aerosol Photometer
Portable photometer for in-situ filtration system testing.
- Dimensions: 33 x 25.7 x 15.2 cm
- Weight: 8.6 kg
- Flow control: 1 cfm / 28.3 lpm +/- 5%
- Power: 100-250 VAC, 50/60 Hz
Range and performance
Core photometric values used when screening fit for filter leak testing work.
- Dynamic range: 0.0001 to 120 mg/m3
- Accuracy: 1% of readings, 0.01% to 100%
- Repeatability: 0.5% of readings above 0.01%
- Reagents: PAO-4, DOP, DOS/DEHS, Ondina, Paraffin, user defined
iProbe Plus reporting
Designed for scan traceability, security and field reporting.
- Scan IDs: job, room, filter, technician
- Data: max leakage, scan time, alarms, pass/fail
- Storage: approx. 150,000 scans
- Export: CSV and PDF file formats
Compliance context
Relevant standards and order references from ATI product data.
- Industry: ISO 14644-3, NSF-49, IEST-RP-CC034, EN 12469
- 2i 120V: part no. 9300241
- 2i 220V: part no. 9300242
- iProbe Plus only: part no. 9300538
Need photometer selection and training?
Tell us the filter type, aerosol method, voltage preference, probe expectation, reporting requirement and user team. We will help define the configuration and training scope.
